Control unit for ELECTRIC BIKE RESET EBIKE 48V15A - UPG connection
Use Mouse Wheel to Zoom In/Out
| Price: |
|
|---|---|
| Freight costs: | From € 5,98 VAT included (22%)Details |
| Item code: | CDD4 |
| Brand: | Capobranco |
| Unit of measurement: | PZ |
| Availability: | Available (3 PZ)
Delivery 24/48h working (3 PZ) |
| Quantity: |
Users feedback
Description

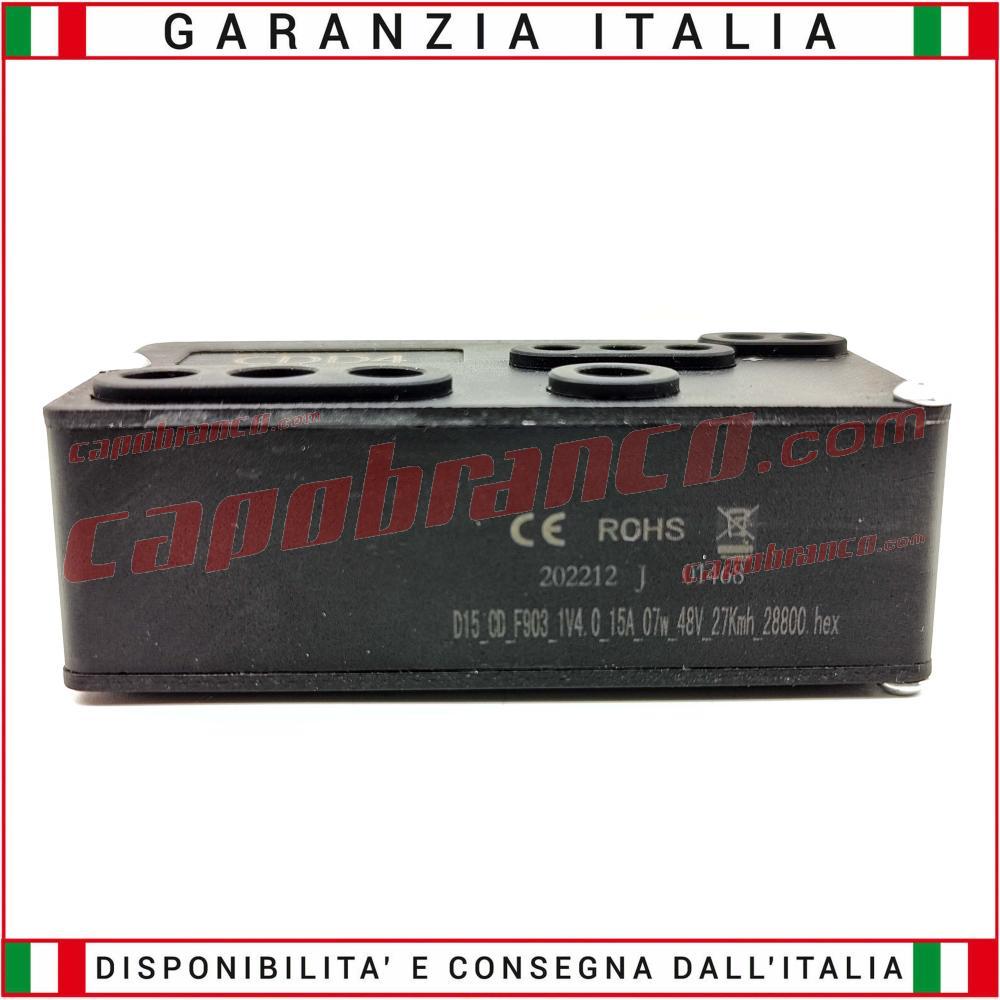

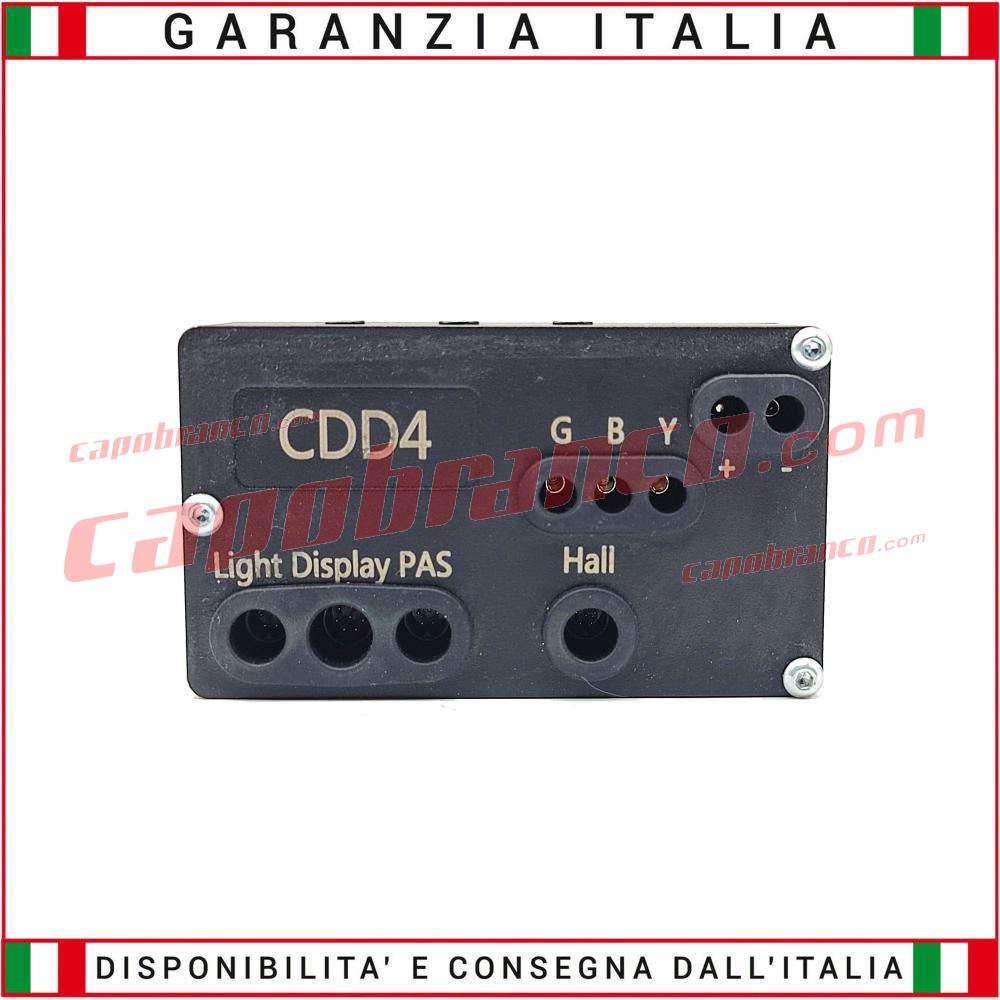

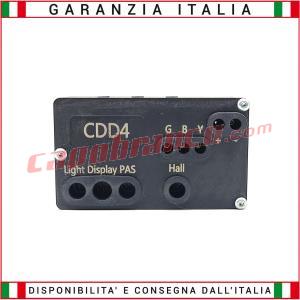

Control unit for ELECTRIC BIKE RESET EBIKE 48V15A - UPG connection
- This control unit is a replacement ONLY AND EXCLUSIVELY for the same RESET bike control unit code
- This controller DOES NOT INTERFACE with KT displays and components.
Measures:
LENGTH: 8.6 cm
WIDTH: 5 cm
HEIGHT: 2.8cm
Technical data:
MODEL: CDD4 (TP2250220JZ3P502)
RATED VOLTAGE: DC48V
RATED CURRENT: 8A
MAXIMUM CURRENT: 15A +- 1A
LOW VOLTAGE PROTECTION: DC40+ - 0.5V
SPEED SET: 1-4.2V
For any technical information on assembly and compatibility, the technicians are available on 3206140014 also with whatsapp message. Capobranco Project is not responsible for tampering or incorrect installations. The control units use the best components to provide the best quality and reliability. The control units, assembled by specialized technicians, are tested at the end of the production process and before shipping. Capobranco Project guarantees a 1 year warranty on the control units for electric bikes, scooters and electric scooters. Our products are stored and shipped from our headquarters in Italy.
