Control Unit + LED Display + Universal Pas 36V 15A Brushless Motors Kit

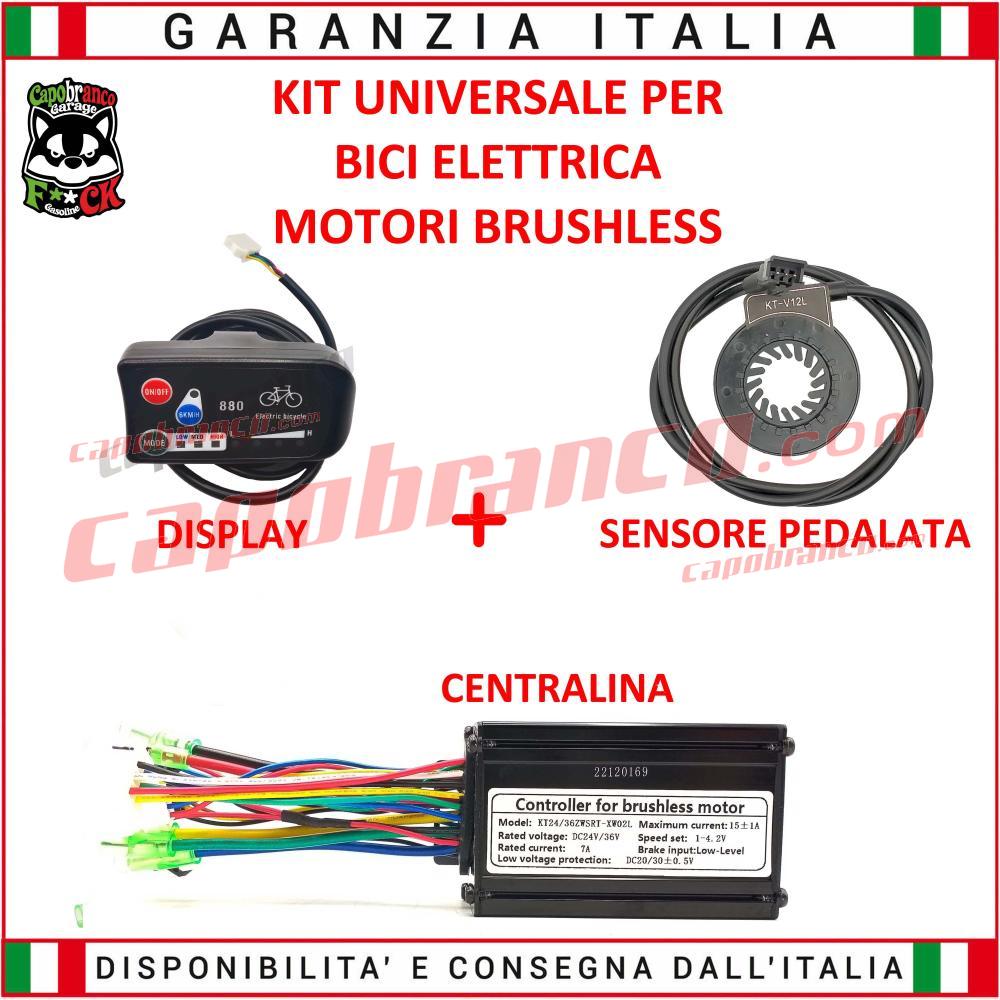

Universal kit consisting of:

- 24 / 36V Normal Cable control unit
- 36 / 48V Multifunction Led Display
- Pedal Assisted Pas sensor.

NB: This kit can only be assembled complete with all its components and only and exclusively on brushless motors (brushless motors with 3 large wires plus 5/6 small ones at the motor output).

Technical specifications:

24/36 Volt 15A control unit with and without hall sensors

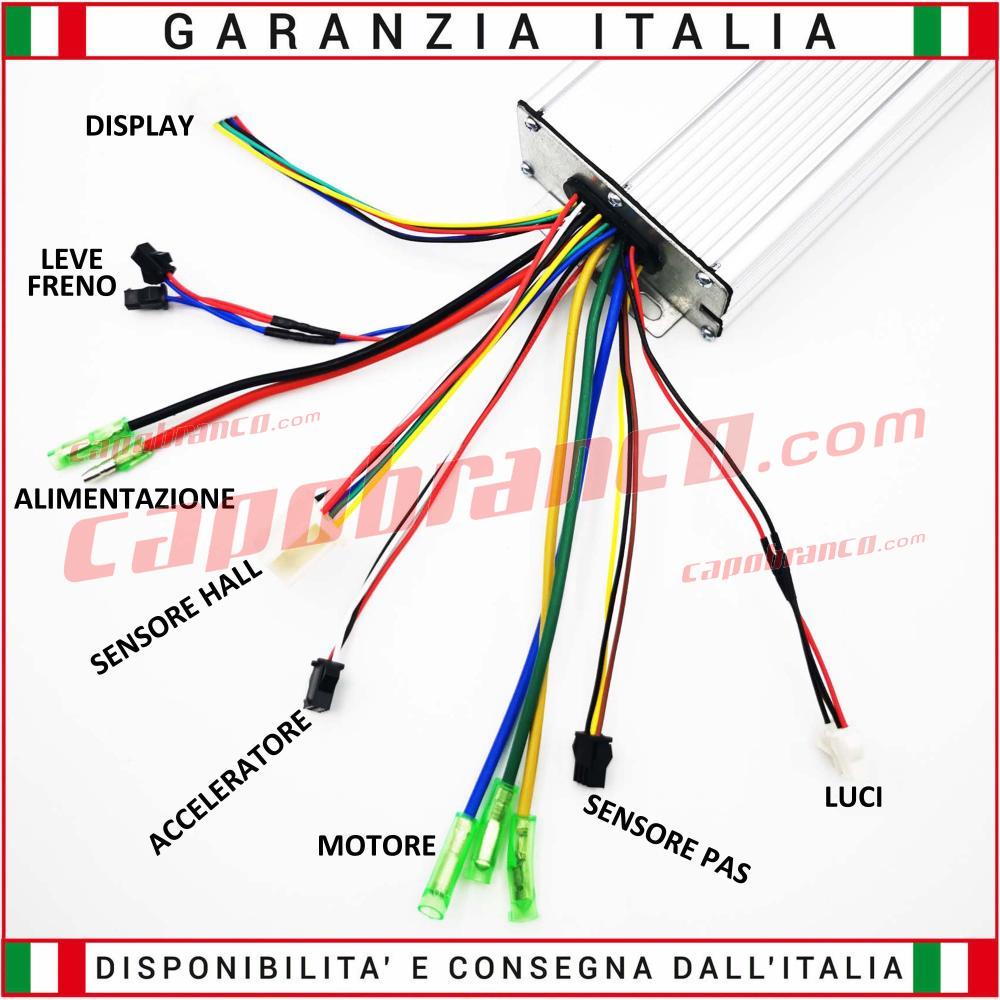

- This universal control unit has the ability to work at two different voltages in fact, it can work both at 24v and at 36v and also has the particularity of being able to work both with motors with hall sensors (the 5/6 small wires that come out from the motor) and with motors that do not have hall sensors.
- This universal control unit works with all brushless motors (without brushes) but hardly interfaces with the standard bike displays.
- It can be mounted on: E-Bikes, electric scooters, electric scooters, electric quads, scooters for the disabled. So on every electric vehicle that has a brushless motor (you can guess if the motor is brushless from the exit of three yellow, green and blue wires from the motor).
- We also recommend purchasing our universal display to make sure the controller works properly.
Measurements:
LENGTH: 8.5 cm
TOTAL LENGTH: 10 cm
WIDTH: 5 cm
HEIGHT: 3 cm
Technical data:

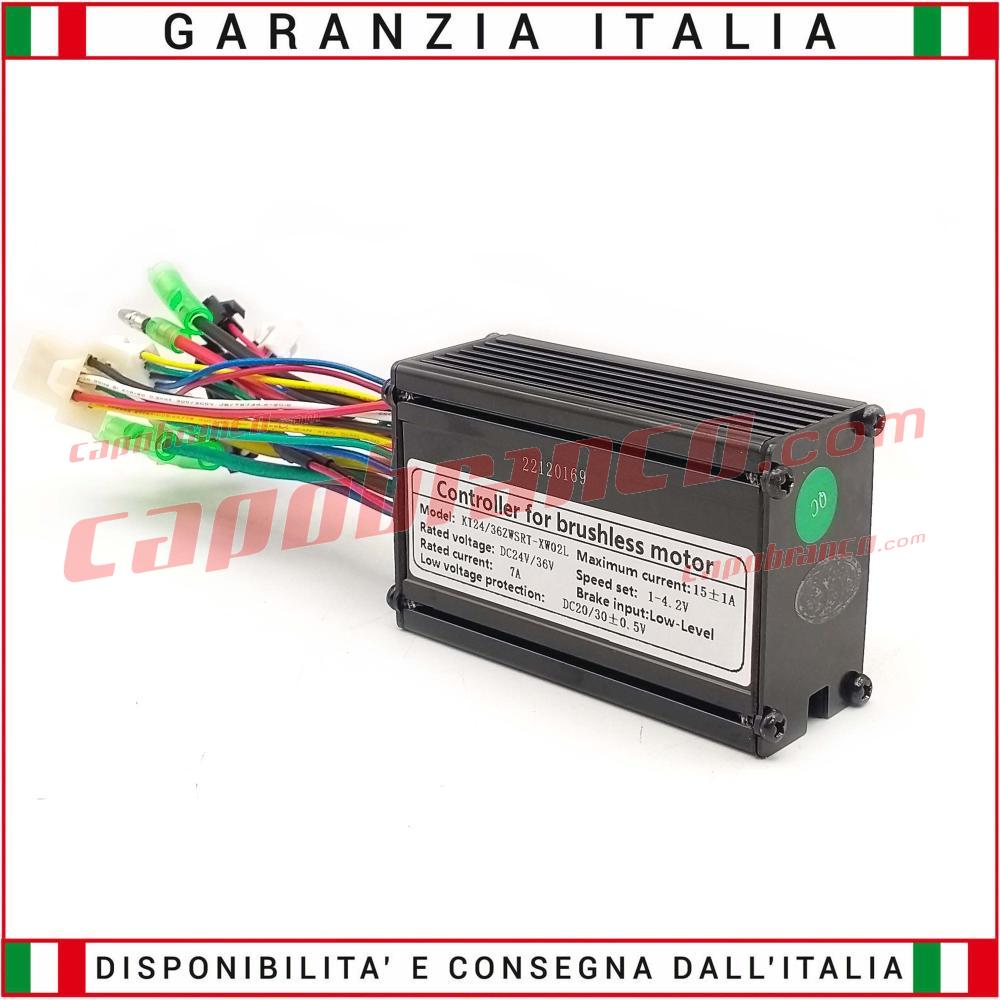

MODEL: KT24-36ZWSRT-TP02N
NOMINAL VOLTAGE: DC24 / 36
NOMINAL CURRENT: 7A
MAXIMUM CURRENT: 15A
LOW VOLTAGE PROTECTION: DC20 / 30 + - 0.5V
SPEED SET: 1-4.2V
The control units branded CAPOBRANCO use the best components to provide the best quality and reliability. Our control units, assembled by specialized technicians, are tested at the end of the production process and before shipment. On the control units for electric bikes, scooters and electric scooters, Capobranco Project guarantees a 1-year guarantee. Our products are stored and shipped from our headquarters in Italy.

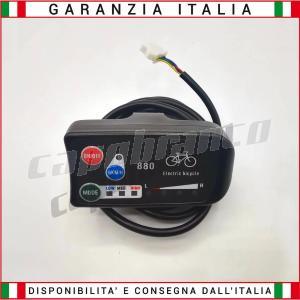

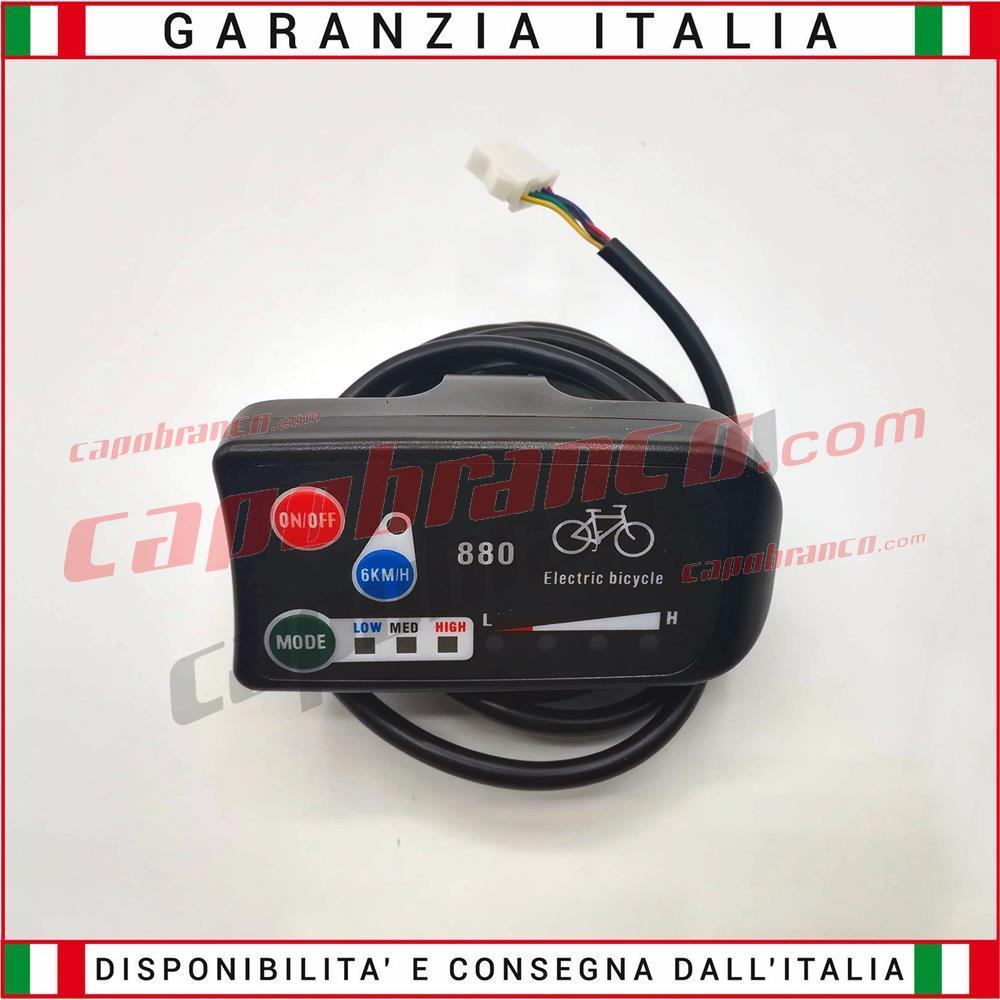

36/48 Volt LED display model 880 - Standard connection
- This universal display can work with all brushless motors (without brushes) but hardly interfaces with the standard bike ECUs.
- This universal display does not necessarily interface with the bike's standard ECU, so in case of difficulty we recommend purchasing the universal kit: display plus ECU.
Technical data:
battery level
3 levels of assistance
6 km / h function

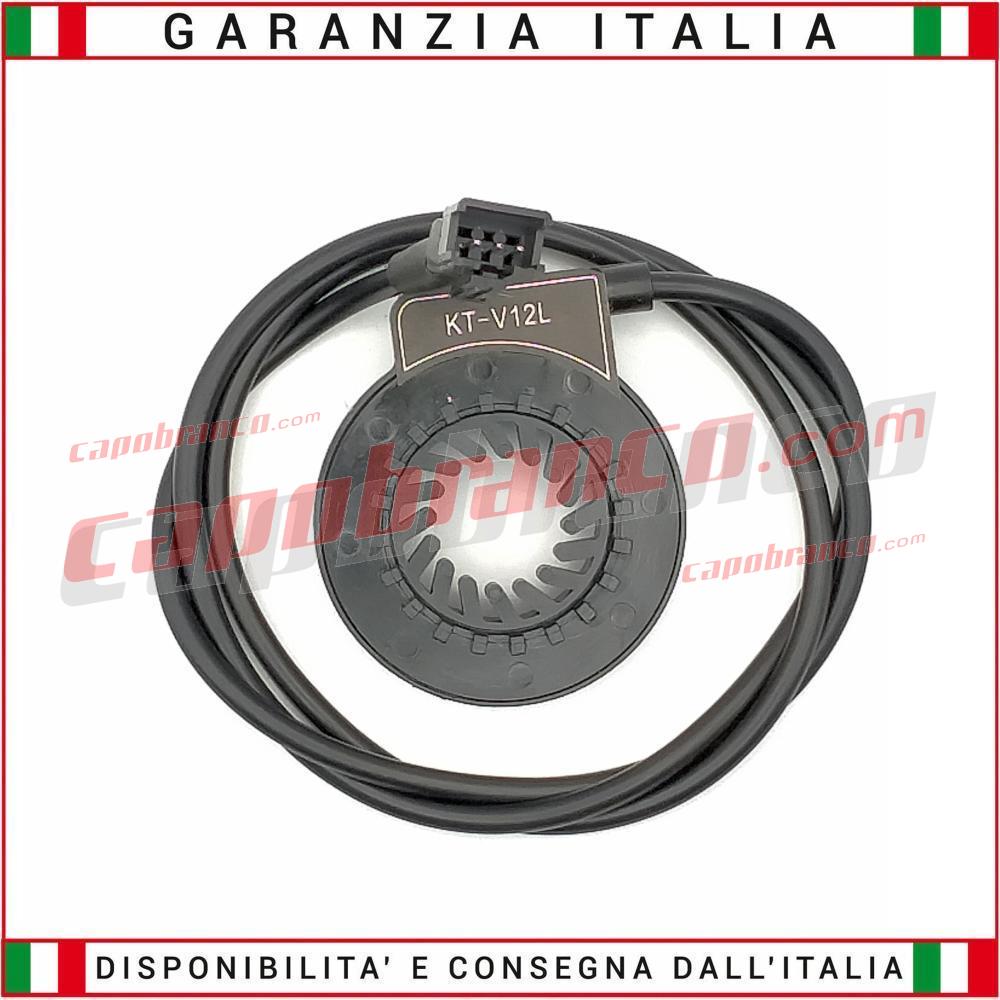

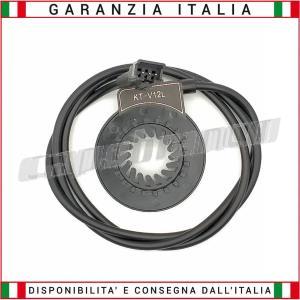

PAS Sensor Pedal Assist KT-V12L with Normal Cable connection
This pedaling sensor (PAS) is mounted on the left side of the bike.
To install it, the crank arm must be disassembled and then reassembled by tightening the PAS on the axis of the bottom bracket.

For any technical information on assembly and compatibility, the technicians are available on 3206140014 also with a whatsapp message. Capobranco Project is not responsible for tampering or incorrect installations. On the control units for electric bikes, scooters and electric scooters, Capobranco Project guarantees a 1-year warranty. Our products are stored and shipped from our headquarters in Italy.
