Control Unit Kit + LED Display + Universal Pas 36 / 48V 25A Brushless Motors

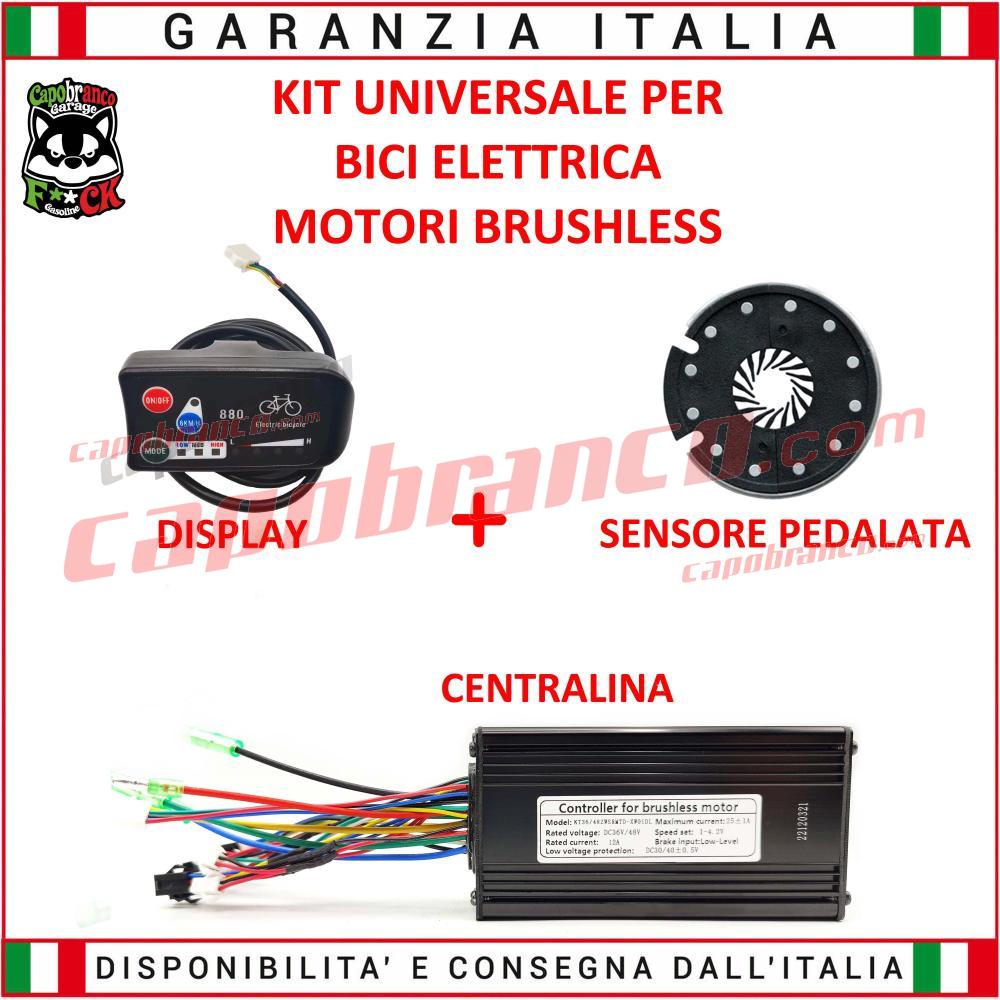

Universal kit consisting of:

- 36 / 48V Normal Cable control unit
- 36 / 48V Multifunction Led Display
- Pedal Assisted Pas sensor.

NB: This kit can only be assembled complete with all its components and only and exclusively on brushless motors (brushless motors with 3 large wires plus 5/6 small ones at the motor output).

Technical specifications:

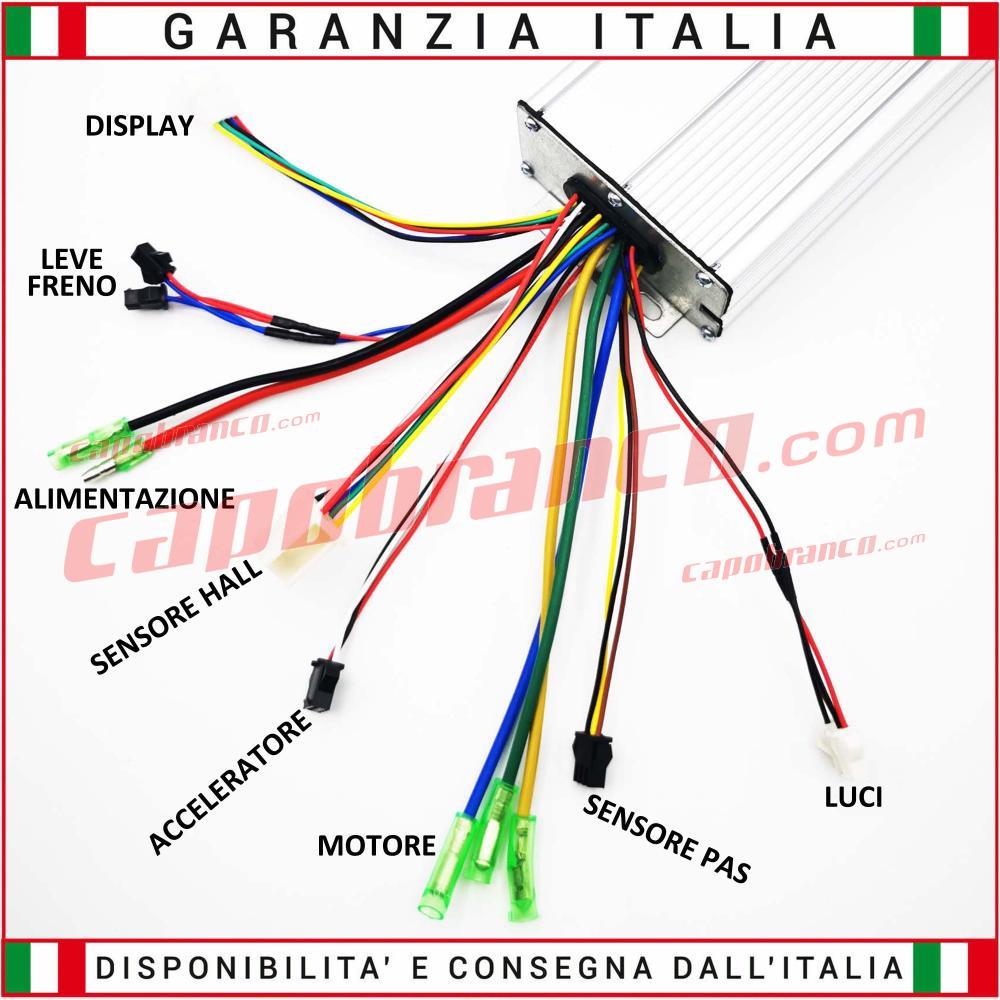

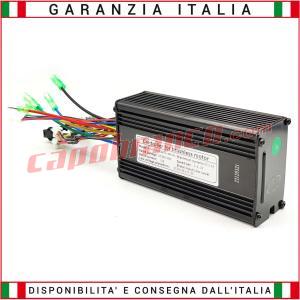

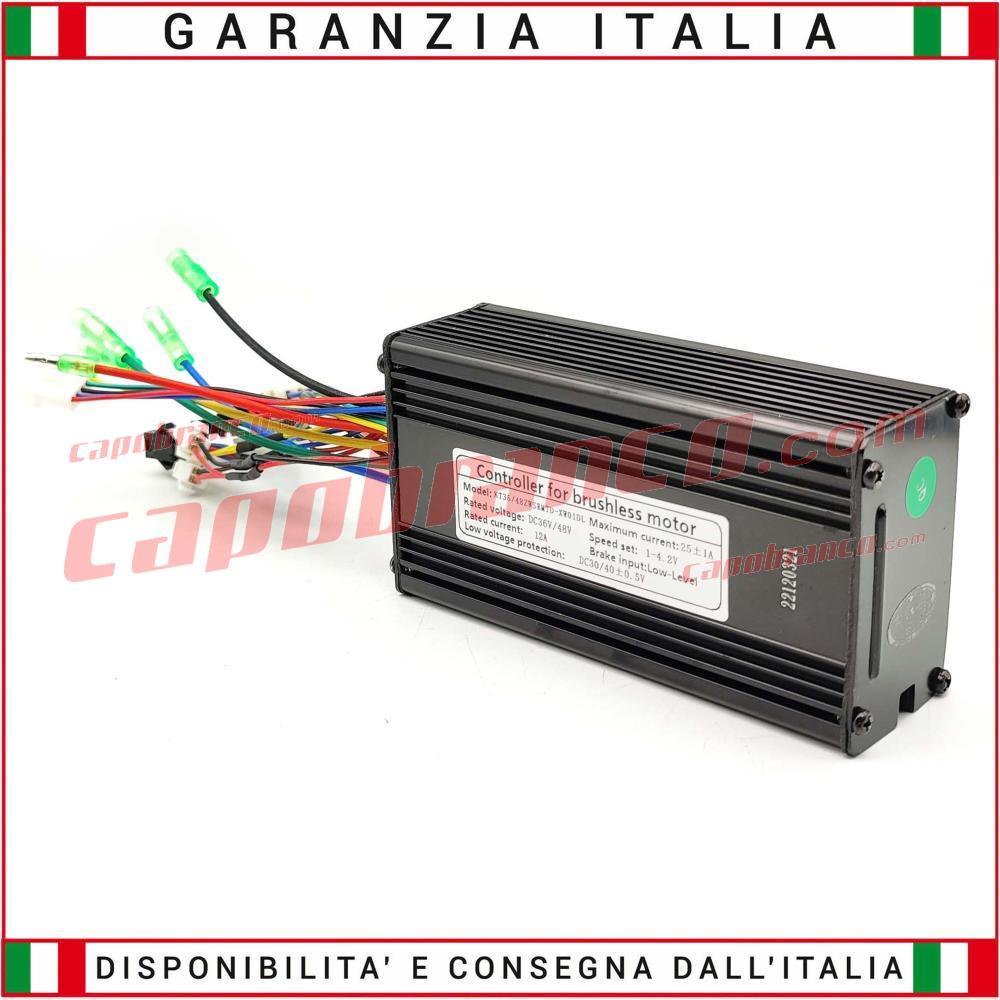

Control unit 36/48 Volt 25A - with and without hall sensors - standard connection
- This universal control unit has the ability to operate at two different voltages in fact it can work both at 36v and at 48v and also has the particularity of being able to operate both with motors with hall sensors (The 5/6 small wires coming out of the motor) and with motors that are not equipped with hall sensors.
- This universal control unit works with all brushless motors (without brushes) but hardly interfaces with the standard bike displays.
- It can be mounted on: E-Bikes, electric scooters, electric scooters, electric quads, scooters for the disabled. So on every electric vehicle that has a brushless motor (you can guess if the motor is brushless from the exit of three yellow, green and blue wires from the motor).
- We also recommend purchasing our universal display to make sure your controller works properly.

Misure:
LUNGHEZZA: 12,5 cm
LUNGHEZZA TOTALE:13,5 cm
LARGHEZZA: 6,5 cm
ALTEZZA: 4 cm

Dati tecnici:
MODELLO: KT36/48ZWSRMTD-XW01DL
TENSIONE NOMINALE: DC36V/48V
CORRENTE NOMINALE: 12A
CORRENTE MASSIMA: 25+-1A
PROTEZIONE A BASSA TENSIONE: DC30/40+ - 0.5V
SPEED SET: 1-4.2V

36/48 Volt LED display model 880 - Standard Connection
- This universal display can work with all brushless motors (without brushes) but hardly interfaces with the standard bike ECUs.
- This universal display does not necessarily interface with the bike's standard ECU, so in case of difficulty we recommend purchasing the universal kit: display plus ECU.
Technical data:
battery level
3 levels of assistance
6 km / h function

PAS Sensor Pedal Assist KT-D12L with Normal Cable connection
This pedaling sensor (PAS) is mounted on the left side of the bike.
To install it, the crank arm must be disassembled and then reassembled by tightening the PAS firmly on the axis of the bottom bracket.

For any technical information on assembly and compatibility, the technicians are available on 3206140014 also with a whatsapp message. Capobranco Project is not responsible for tampering or incorrect installations. On the control units for electric bikes, scooters and electric scooters, Capobranco Project guarantees a 1-year warranty. Our products are stored and shipped from our headquarters in Italy.
