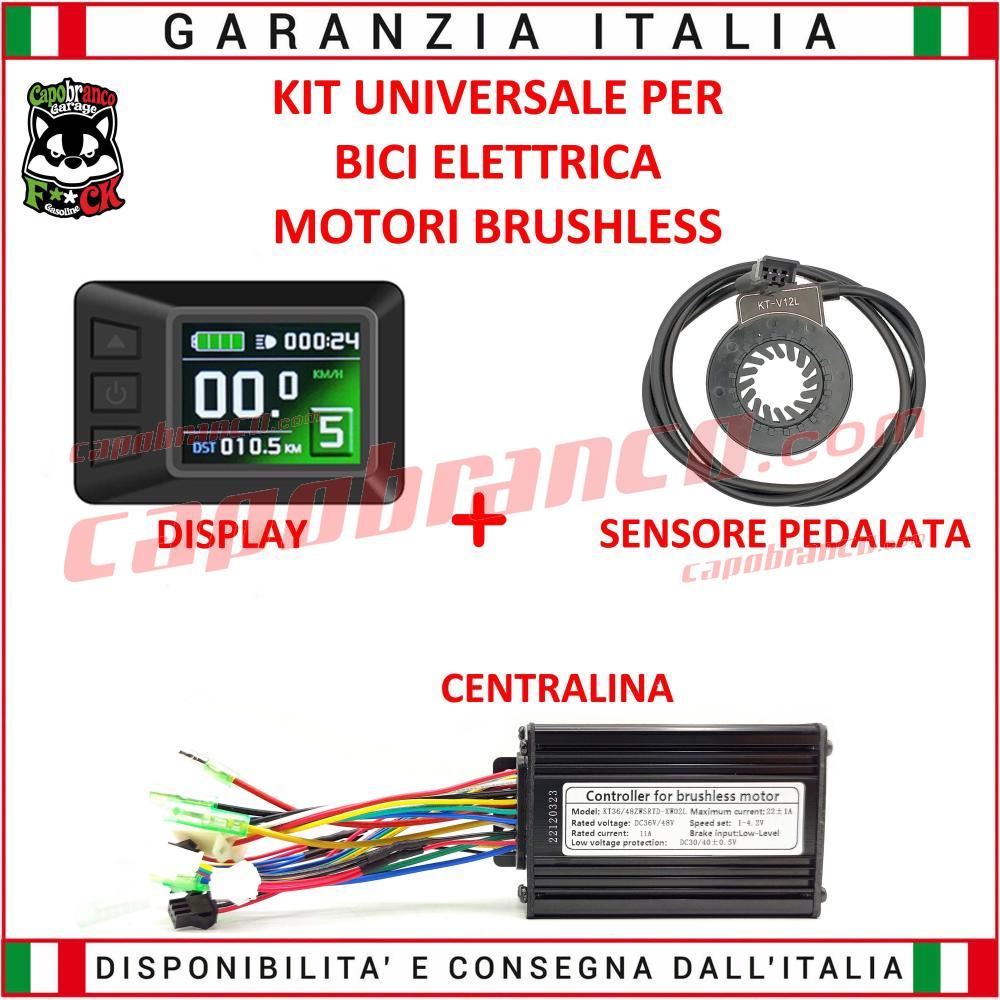

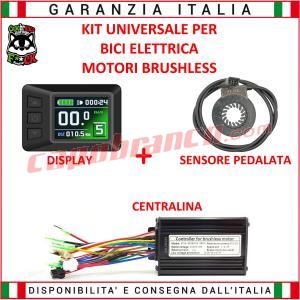

Control Unit Kit + LCD7C Display + Universal Pas 36/48V 22A Brushless Motors

Universal kit composed of:

- 36/48V Normal Cable control unit
- 24/36/48V LCD7C Multifunction Display
- Assisted pedaling Pas sensor.

NB: This kit can only be mounted complete with all its components and only and exclusively on brushless motors (brushless motors with 3 large wires plus 5/6 small ones at the motor output).

Technical specifications:

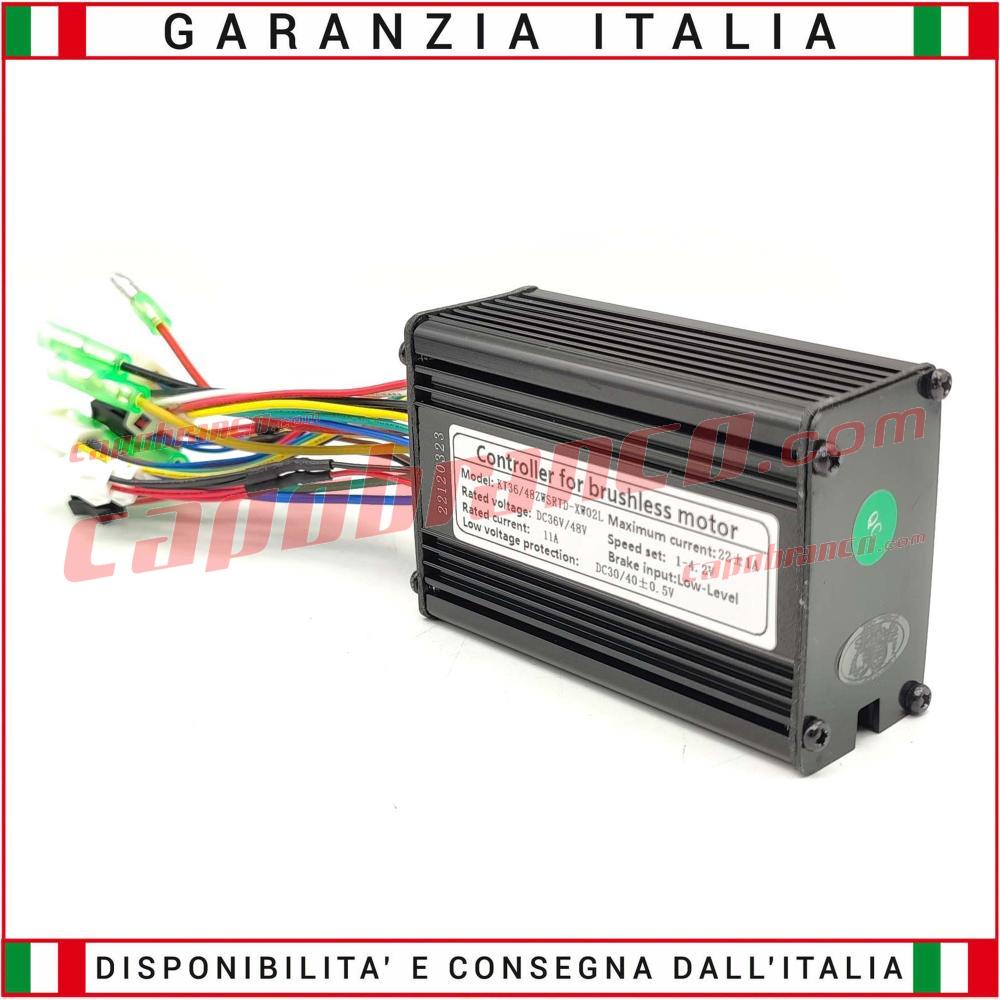

36/48 Volt 22A control unit - with and without hall sensors - standard connection
- This universal control unit has the ability to operate at two different voltages, in fact it can work at both 36v and 48v and it also has the particularity of being able to operate both with motors with hall sensors (the 5/6 small wires coming out of the motor ) and with motors that do not have hall sensors.
- This universal control unit works with all brushless motors (without brushes) but hardly interfaces with the bikes' serial displays.
- It can be mounted on: E-Bikes, electric scooters, electric scooters, electric quads, scooters for the disabled. So on every electric vehicle that has a brushless motor (one can guess if the motor is brushless from the exit of three yellow, green and blue wires from the motor).
- We also recommend the purchase of our universal display to make sure your controller works properly.

Measures:
LENGTH: 9.5cm
TOTAL LENGTH: 10.5cm
WIDTH: 6cm
HEIGHT: 3.5cm

Technical data:
MODEL: KT36/48ZWSRTD-XW02L
RATED VOLTAGE: DC36V/48V
RATED CURRENT: 11A
MAXIMUM CURRENT: 22A +- 1A
LOW VOLTAGE PROTECTION: DC30/40+ - 0.5V
SPEED SET: 1-4.2V

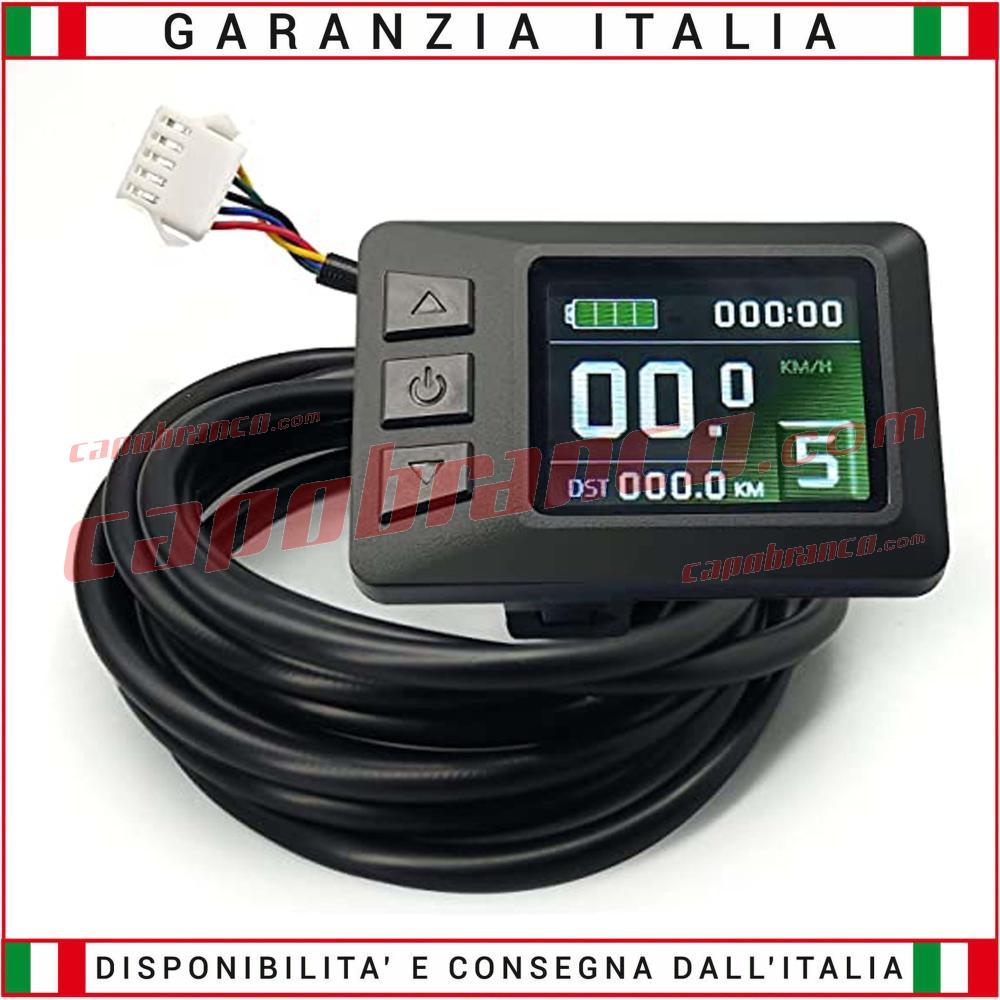

KT LCD7C Color Display 24/36/48 Volt for Electric Bicycles - Standard Connection
This display is only and exclusively compatible with KT (Kunteng) controllers
It has the ability to operate at three different voltages in fact, it can work at both 24v, 36v and 48v.
By purchasing this display it is necessary to verify that the other components are from KT (Kunteng). If not, you can buy all the components on our site.

Technical data:
5 levels of assistance
Full speed
Average speed
Instantaneous speed
Total km
Partial km
Engine usage time
Turning on the display lights
6 km/h function
Battery level info
Brake lever sensor indicator
Display backlight
Possibility of accessing the menu for other settings such as: speed limitation, speed release, etc.

PAS pedal assistance sensor KT-V12L with Normal Cable connection
This pedaling sensor (PAS) is mounted on the left side of the bike.

For any technical information on assembly and compatibility, the technicians are available on 3206140014 also with a whatsapp message. Capobranco Project is not responsible for tampering or incorrect installations. On the control units for electric bikes, scooters and electric scooters, Capobranco Project guarantees a 1-year warranty. Our products are stored and shipped from our headquarters in Italy.
